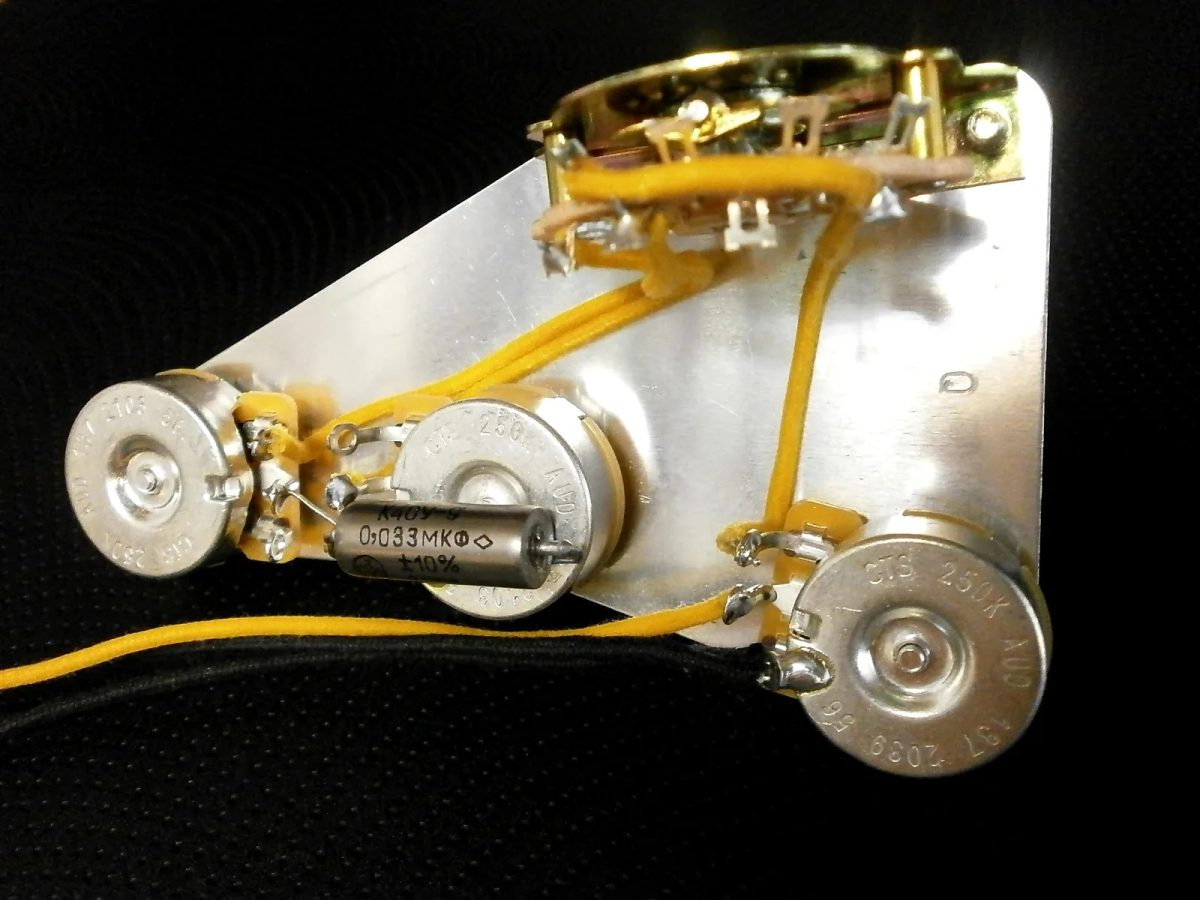

Pre-Wired Harness Stratocaster “33 Special” Strat P.I.O. 0.033uF CTS Fits Fender USA

59,80 € VAT Excluded Price. If required VAT is applied at checkout.

wood-gallery-placeholder-5
Compare
Add to wishlist
Description

Compatible with potentiometer knobs that have FINE KNURLING found on guitars made in the USA and Mexico.

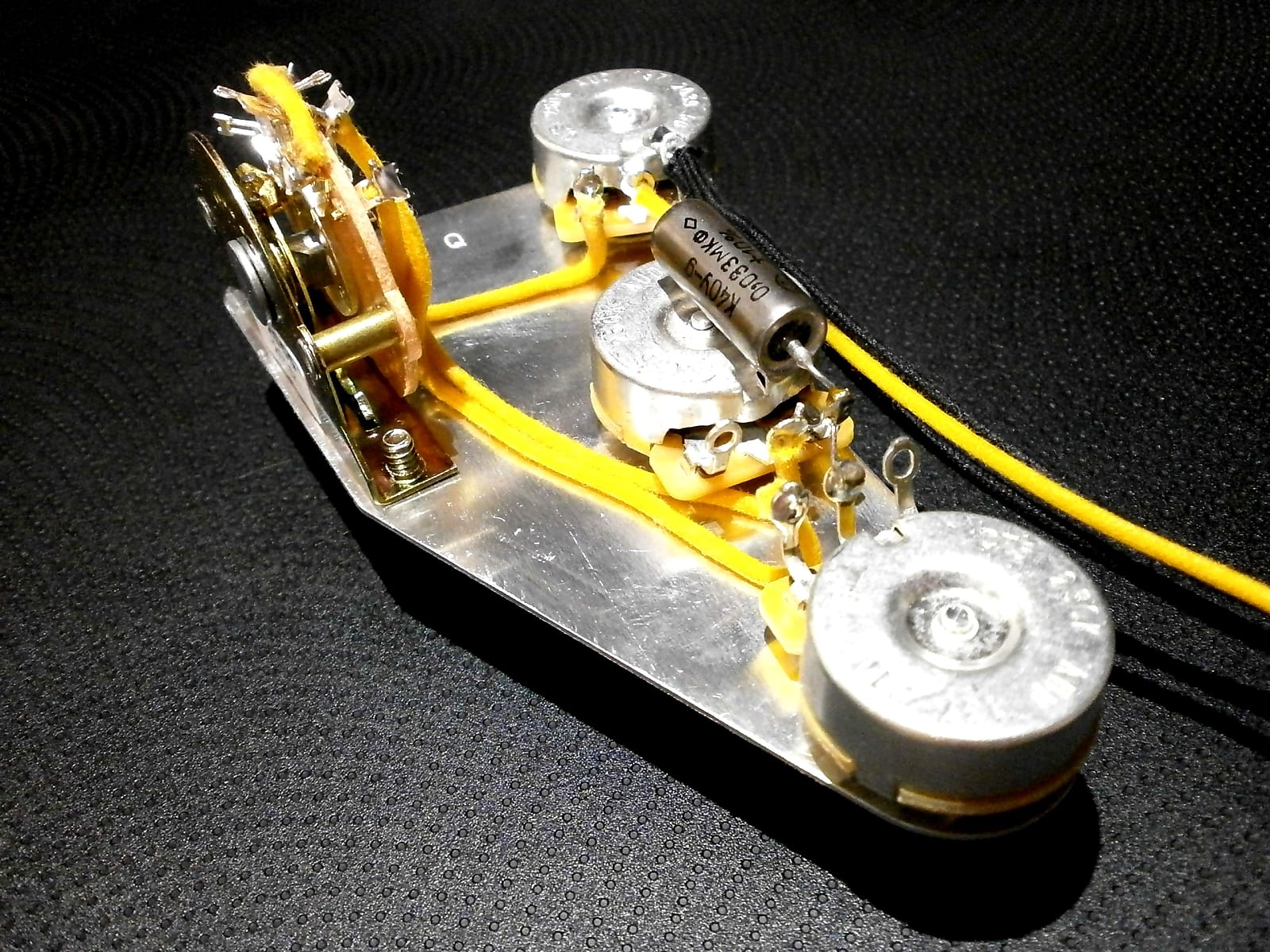

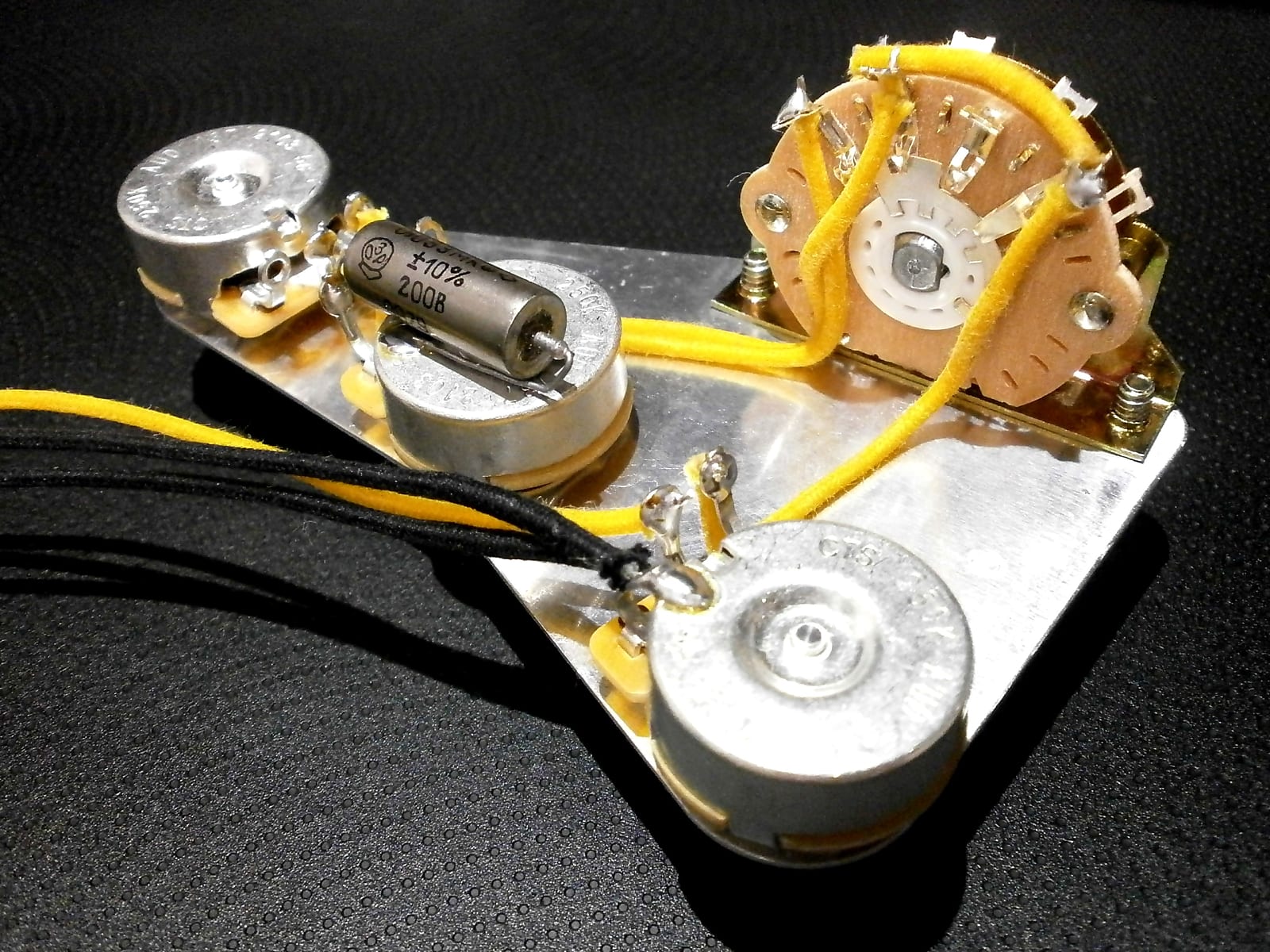

Assembled and soldered in our workshop using top components, ready to drop into your guitar!

We professionally hand-soldered these harnesses using the best brand-name components for long life and great sound:

  • 5-way switch USA Oak Grigsby
  • CTS 250kOhm Audio Taper Potentiometers with fine knurling
  • cloth covered push back Gavitt wire

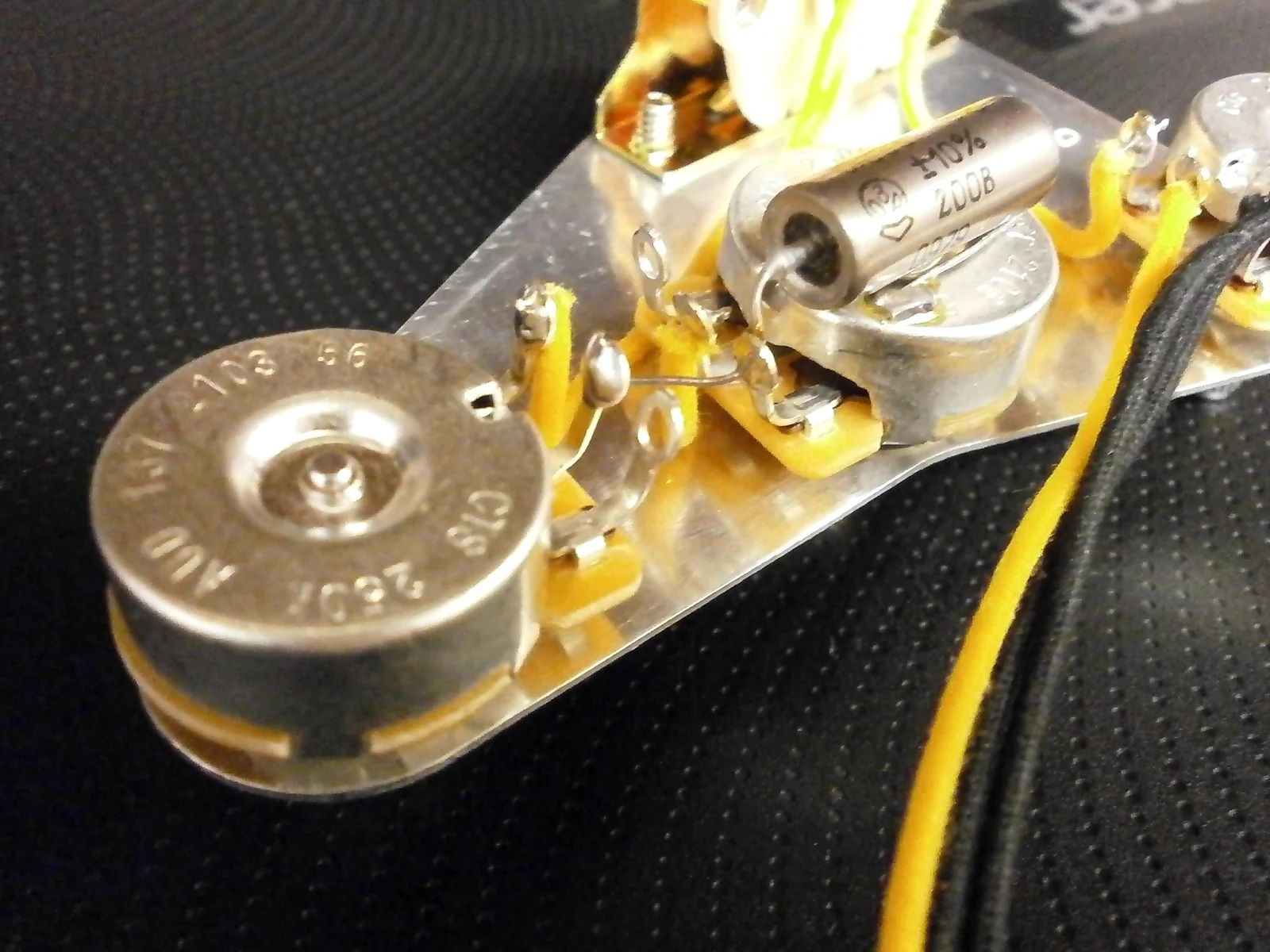

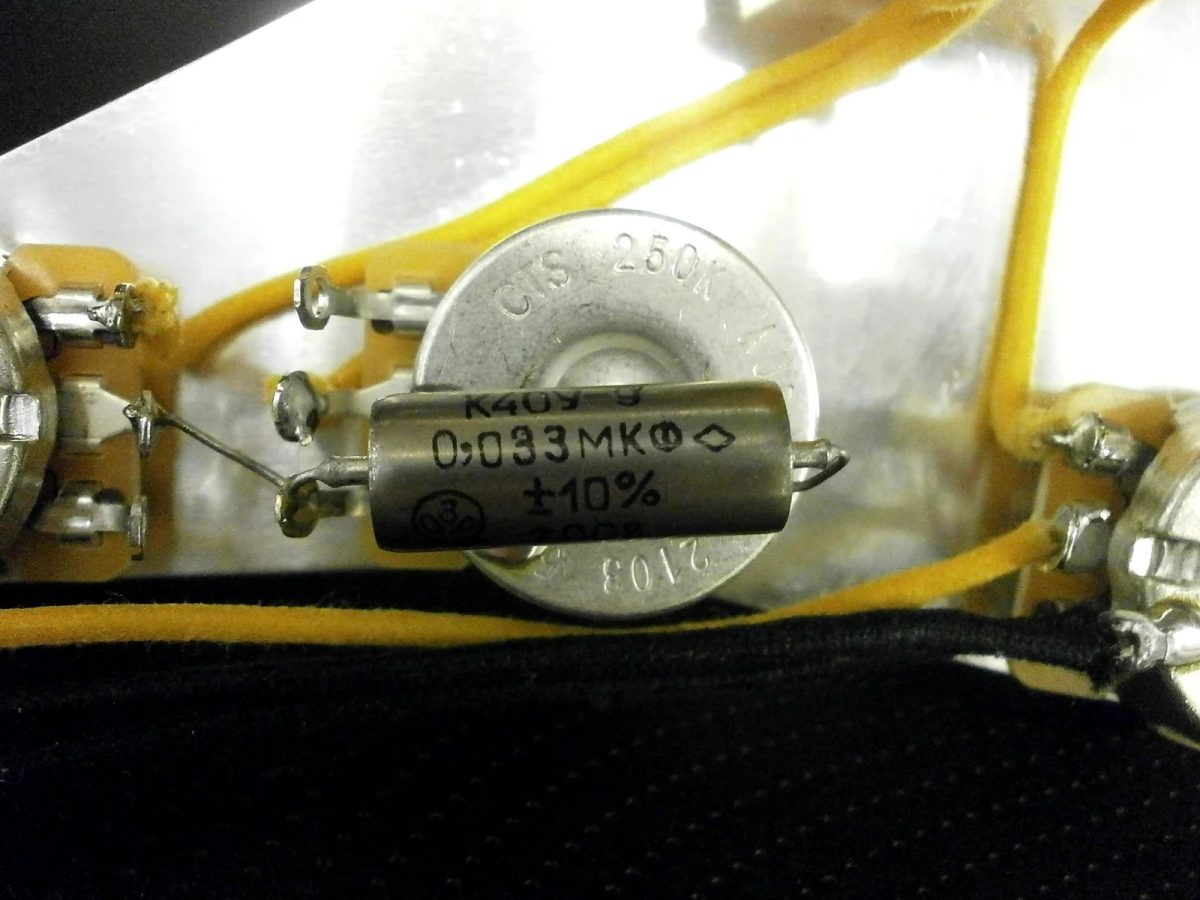

  • 0,033uF Paper In Oil Capacitor 200V 10% K40Y-9

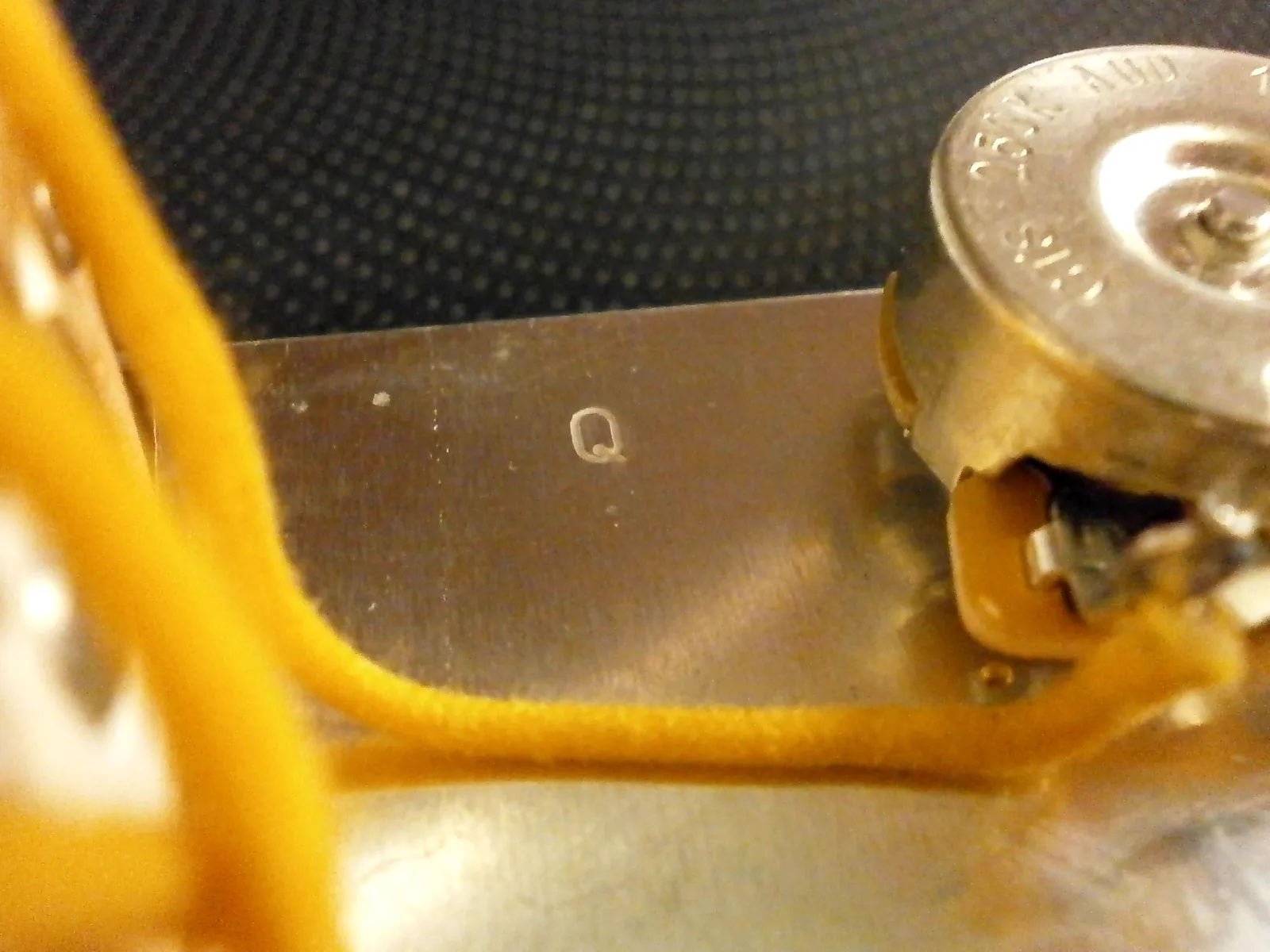

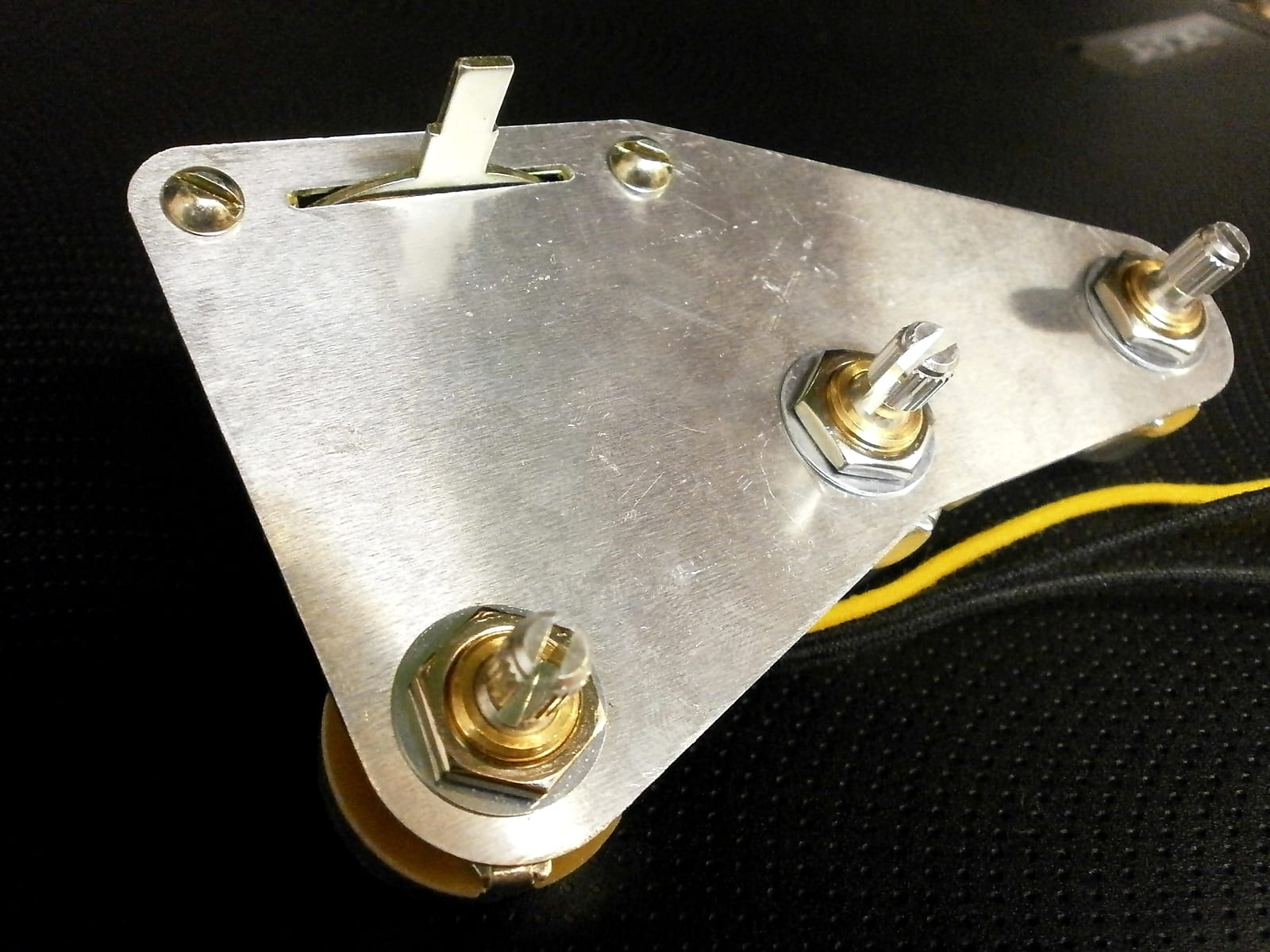

  • assembled and soldered on a thin aluminum plate that will fit most Strat style guitars, both USA and import
  • Switchcraft jack

This is a vintage-style pre-1980 wiring harness, with tone controls assigned as follows:

  • Tone 1: Adjusts the neck pickup.
  • Tone 2: Adjusts the middle pickup.
  • Bridge pickup: No tone control, just like 50s, 60s and 70s Stratocasters.

If you’d like a tone control added to the bridge pickup, just send us a message, and we’ll make the adjustment for you!

Switch:

  • Bridge
  • Bridge/Middle
  • Middle
  • Middle/Neck
  • Neck

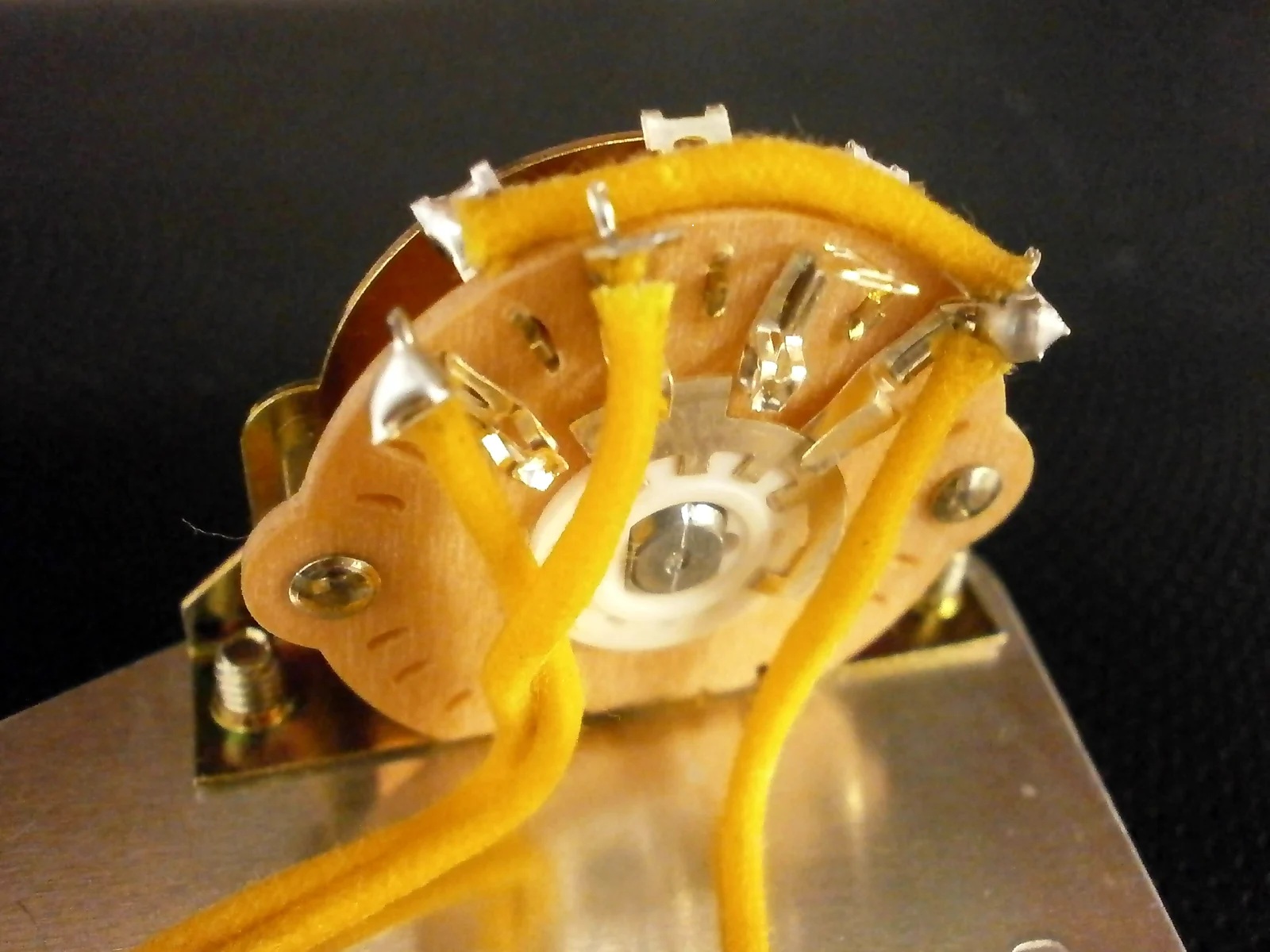

5-way Oak Grigsby Switch Specs

Body cavity depth required 1-3/8″ (34.93mm)
Mounting screw spacing 1-5/8″ (41.28mm)
Lever stem .052″ x .188″ (1.32mm x 4.78mm)
Pickguard slot required 1/16″ x 1-1/16″ (1.59mm x 26.99mm)

CTS Control Pot Specs

Resistance 250K-ohm

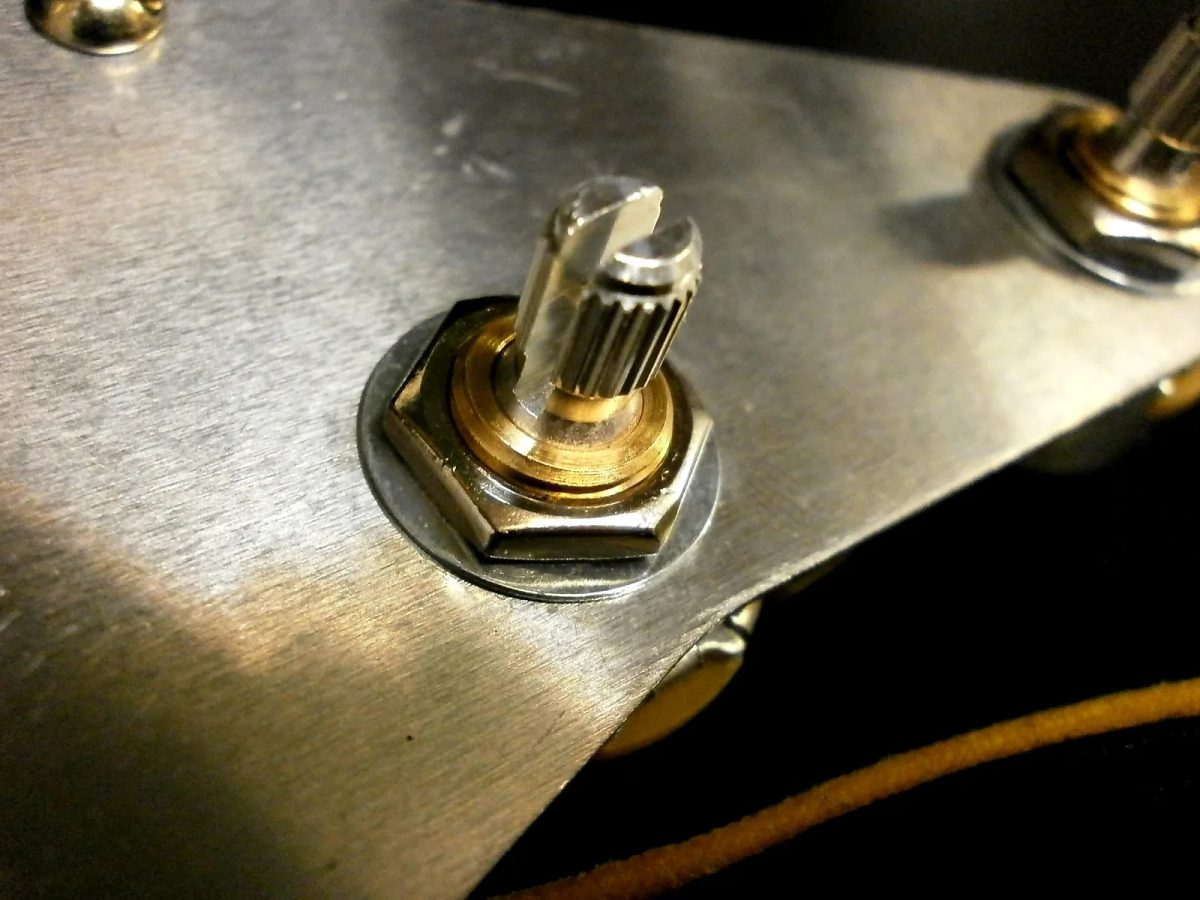

Shaft diameter 0.235″ (5.95mm) split shaft, fine knurling
Thread 3/8″ x 32
Threaded portion height 3/8″ (9.52mm)
Mounting hole diameter 3/8″ (9.52mm)

N.O.S. Paper in Oil Capacitor Specs

Value .033uF, 10%, 200V

Switchcraft Output Jack Specs

Accepts standard 1/4″ plug Mono
Mounting hole diameter 3/8″ (9.52mm)
Thread 3/8″ x 32
Threaded portion height 1/4″ (6.35mm)
Stratocaster®, Strat®, and Squier® are registered trademarks of Fender Musical Instruments Corporation.
Shipping & Delivery

Handling and production time is 3 – 5 business days. Orders with larger quantity of pickups (5 or more pcs) might take longer.

Combined shipping – the items you have purchased will be shipped together in the same package and the actual costs will be calculated at the checkout page.

Available shipping options are Croatia Post AIR MAIL priority registered shipping service (usually 1-2 weeks to the EU and 2-4 weeks overseas) or DHL International Express (5-7 days to the EU and 7-10 days overseas). Tracking information will be available at 17track, USPS or DHL web tracking service.

The actual delivery time may vary depending on your location and customs/postal processing time.

Delivery times for standard mail are usually 2-3 to overseas countries and 1 – 2 weeks for Europe.
