Compatible with non-USA potentiometer knobs, including models from Made in Japan, China, and other Asian brands, that use coarse-knurled potentiometers.
Assembled and soldered in our workshop using top components, ready to drop into your guitar!

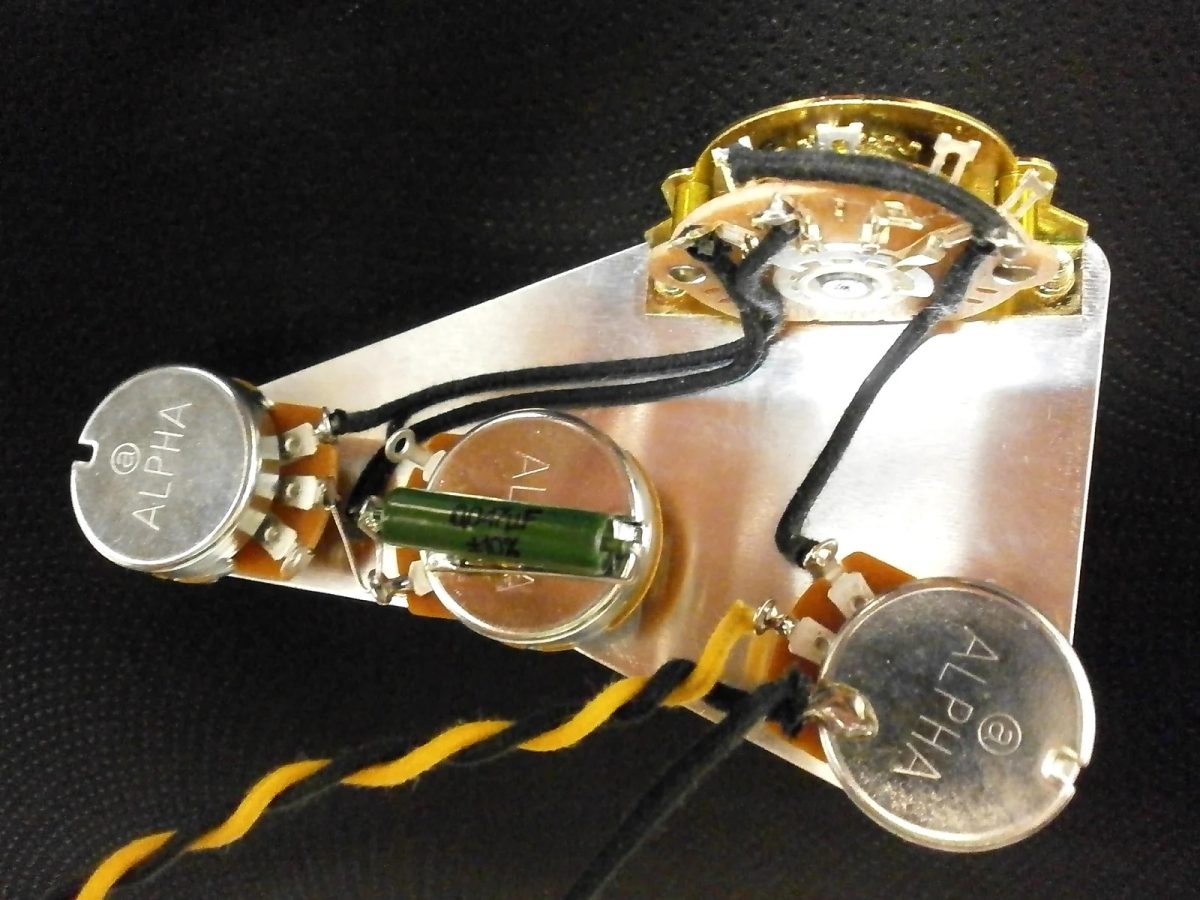

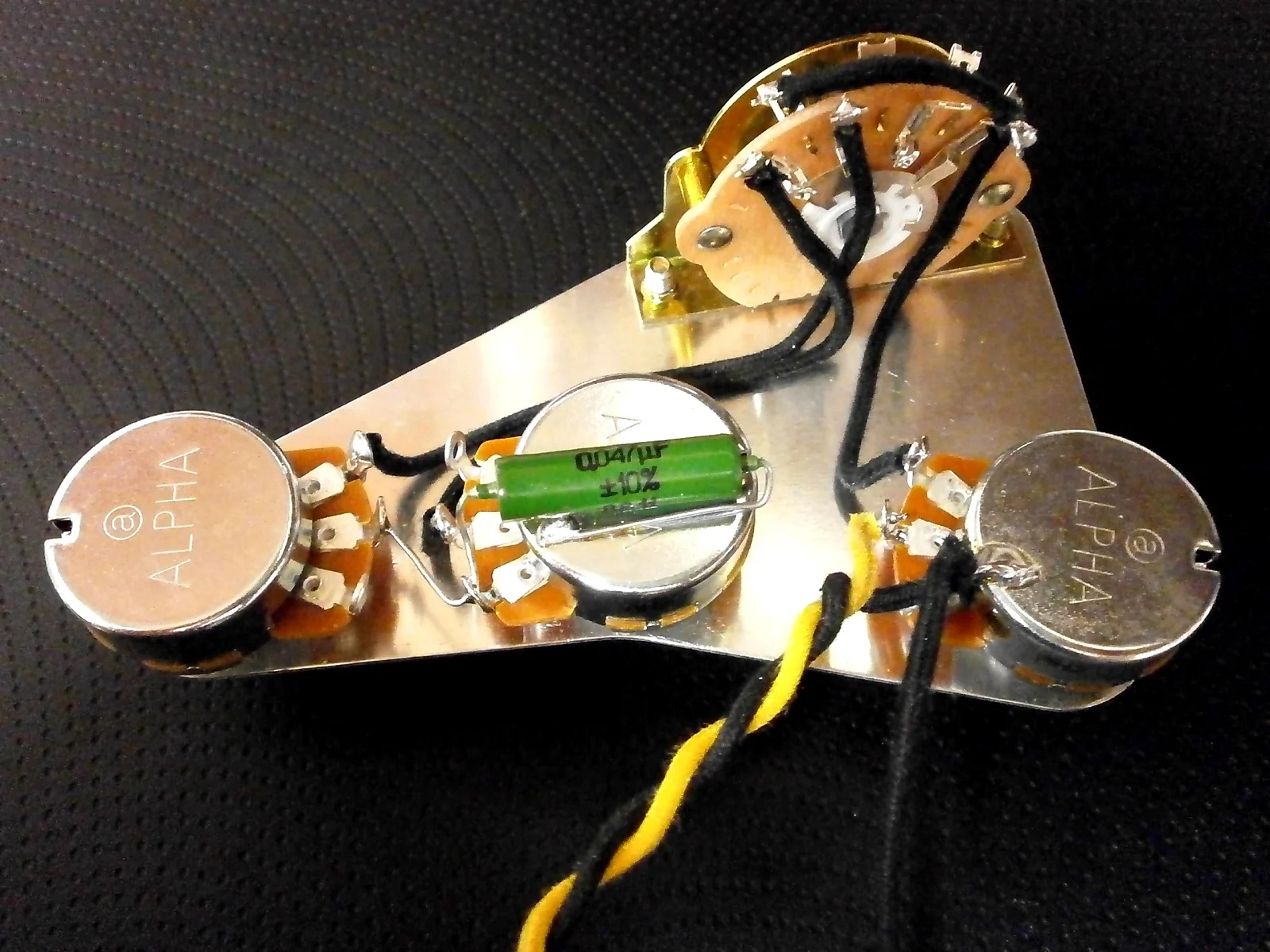

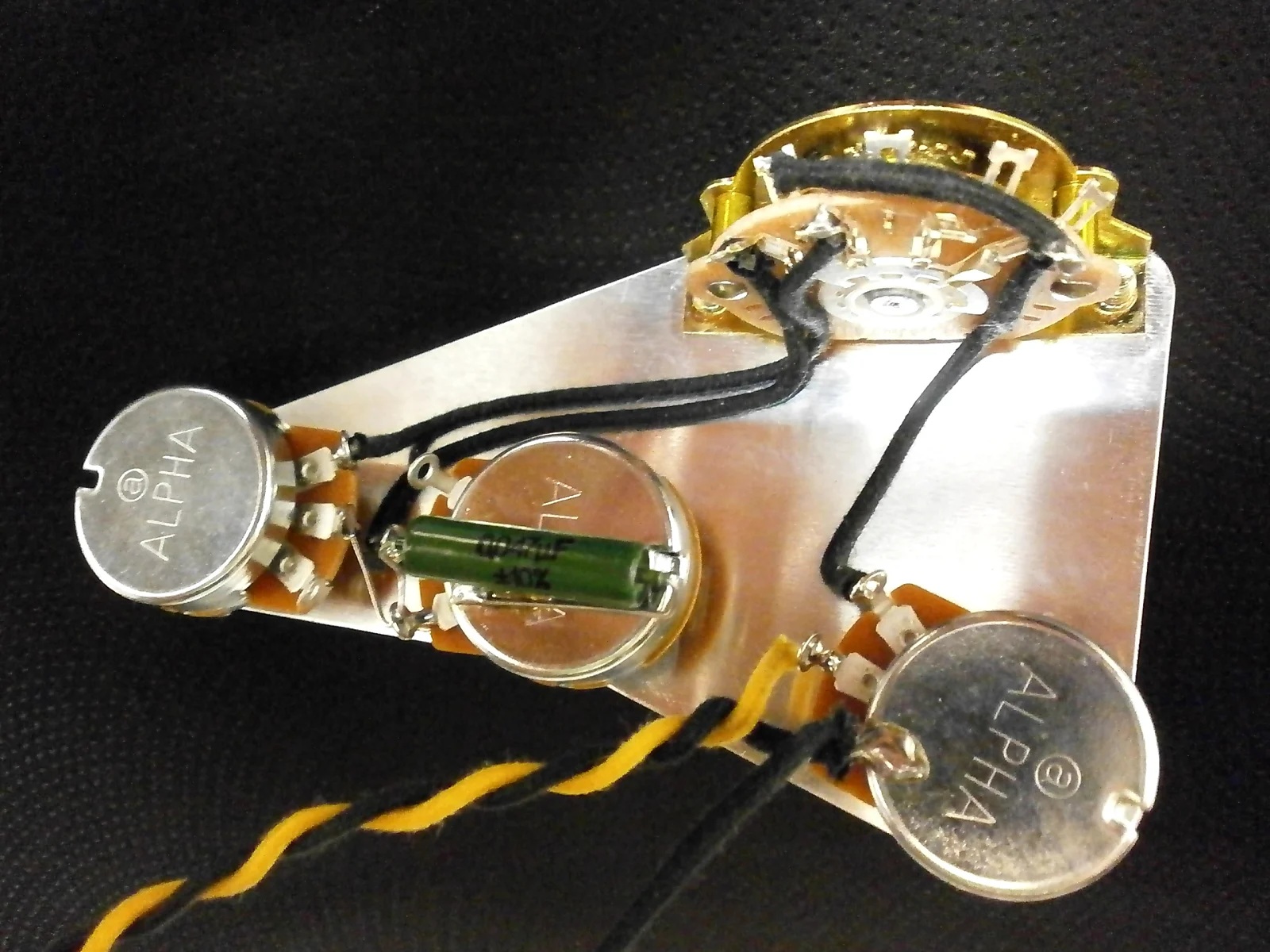

We professionally hand-soldered these harnesses using the best brand-name components for long life and great sound:
– 5-way switch USA Oak Grigsby

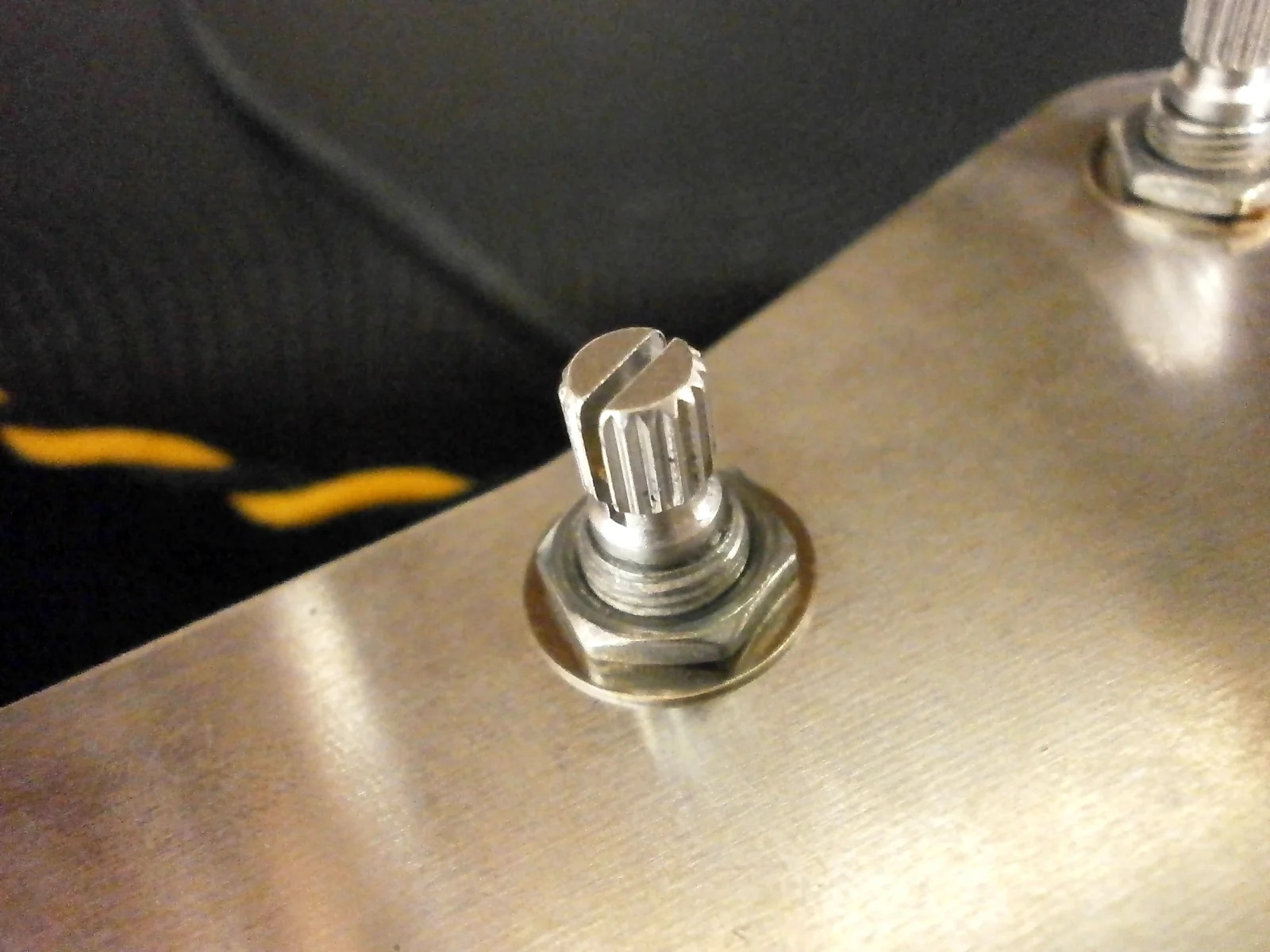

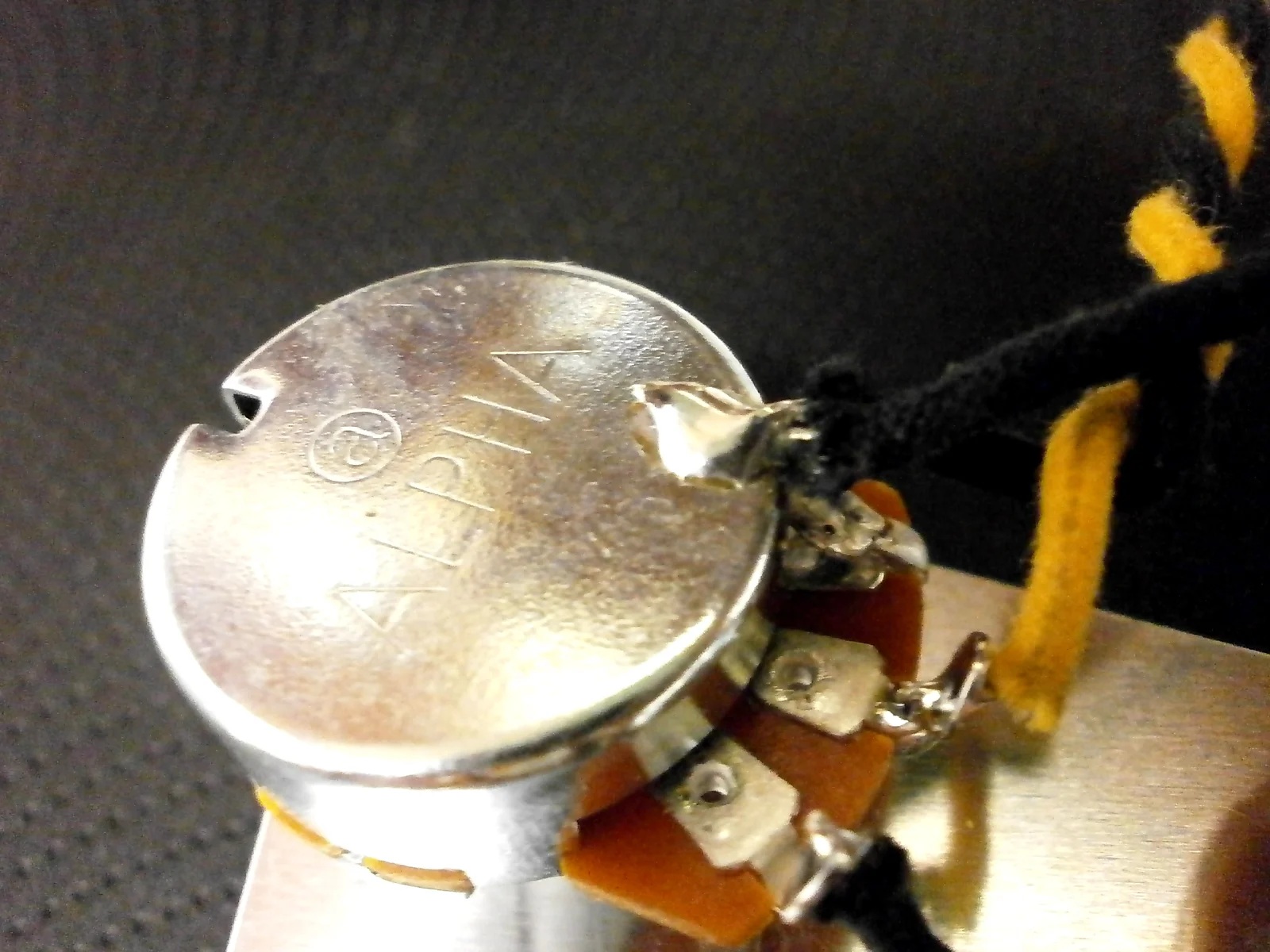

– full size Alpha 250kOhm Audio Taper Potentiometers with COARSE knurling
– cloth covered push back Gavitt wire

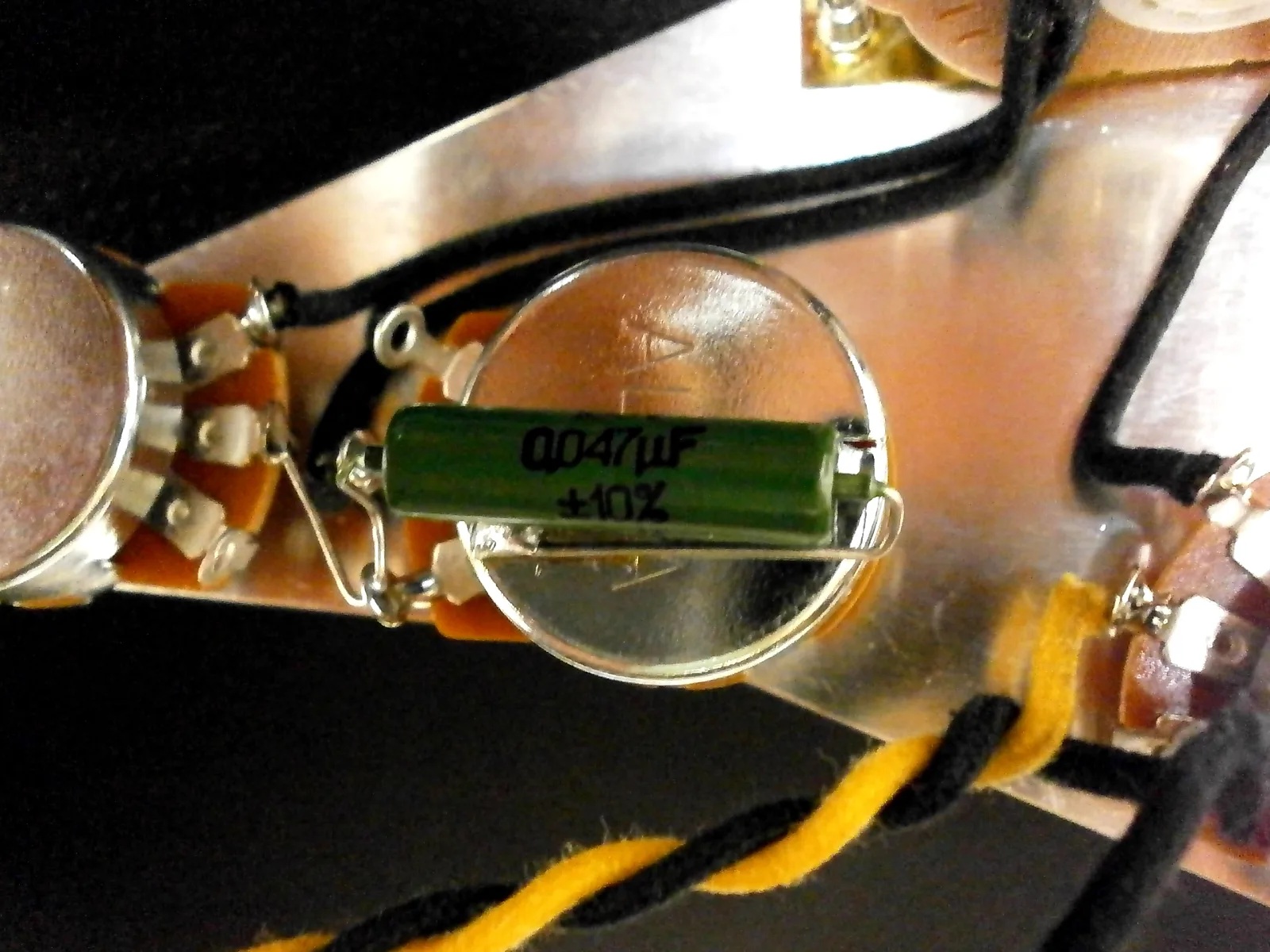

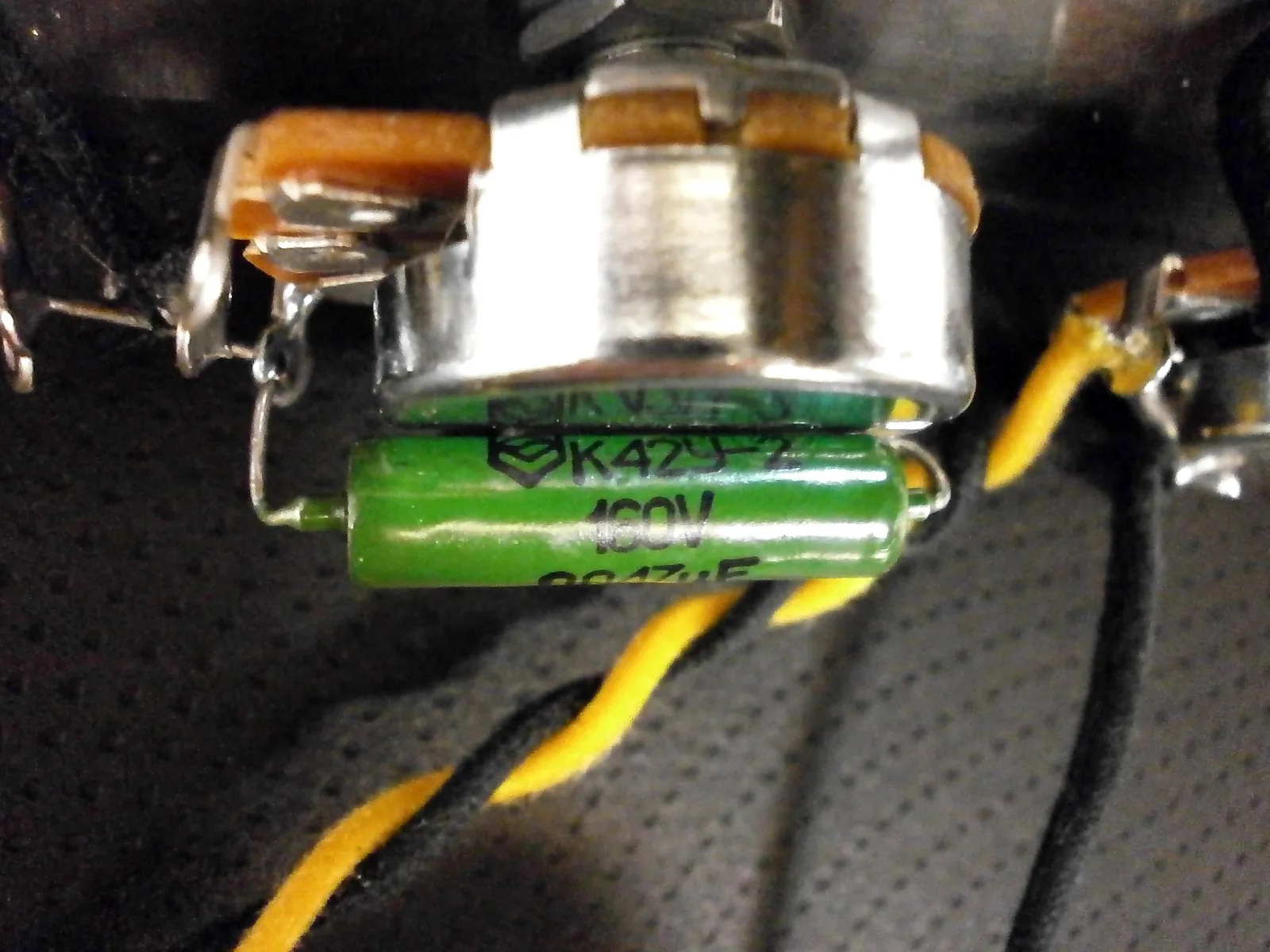

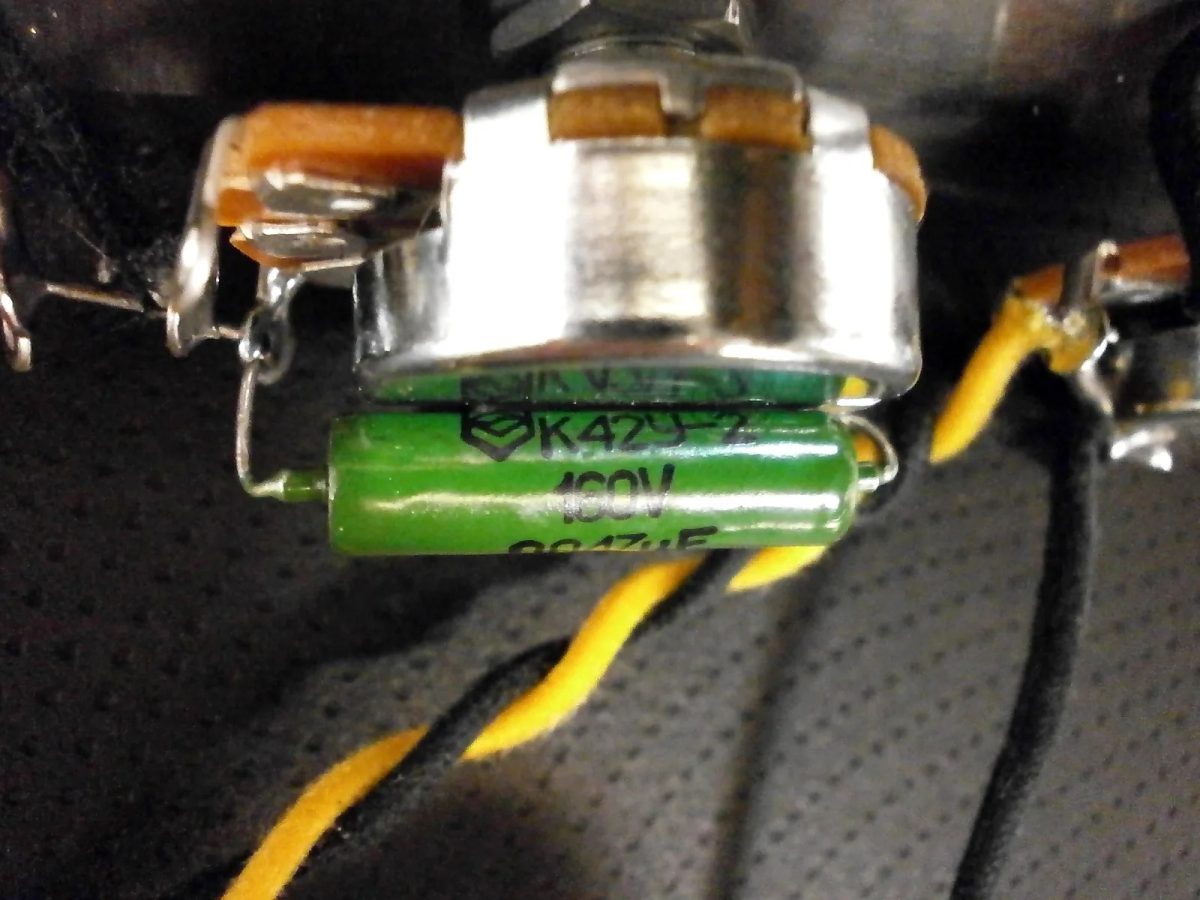

– 0,047uF Paper In Oil Capacitor 160V 10% K42Y-2

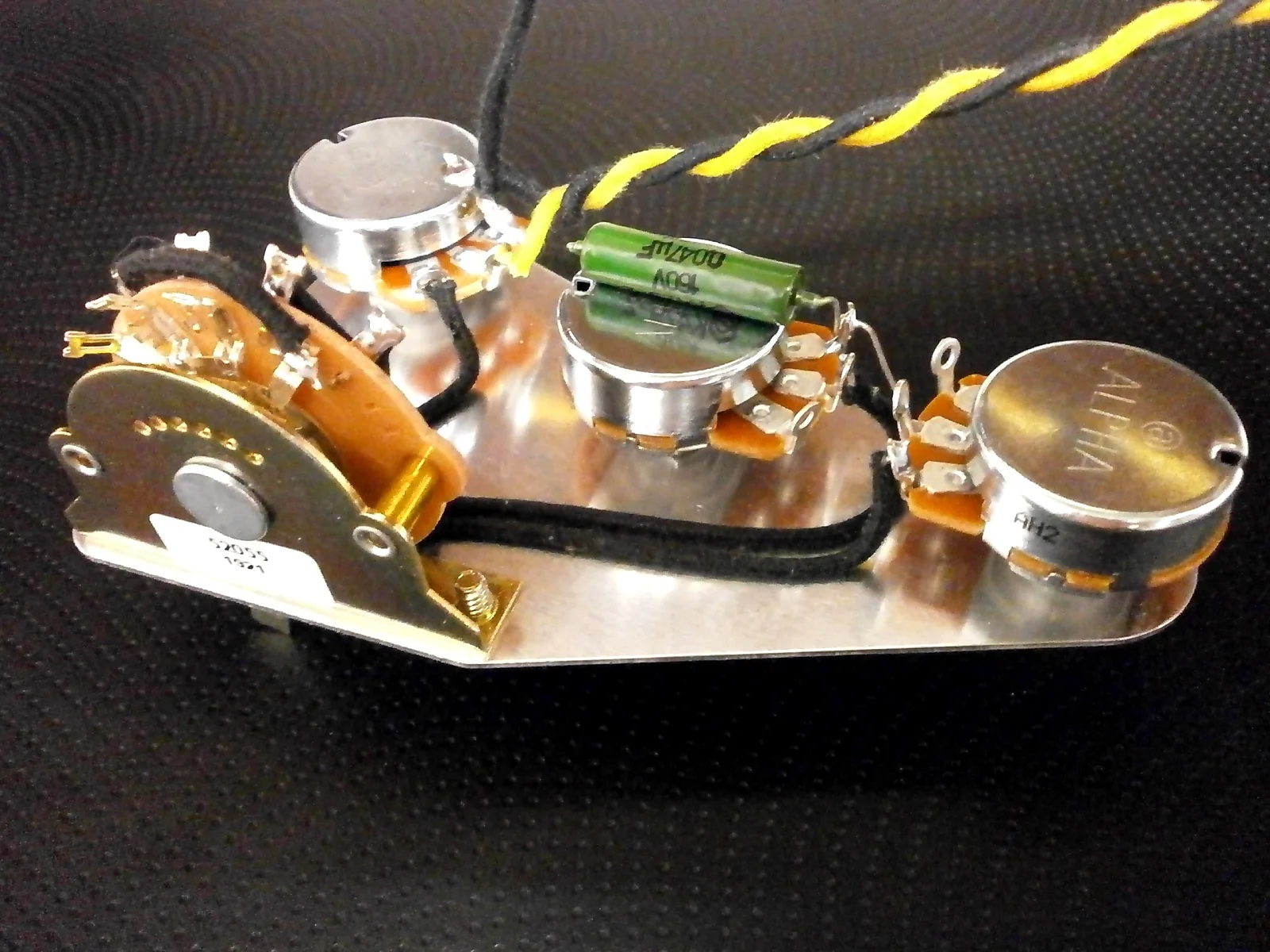

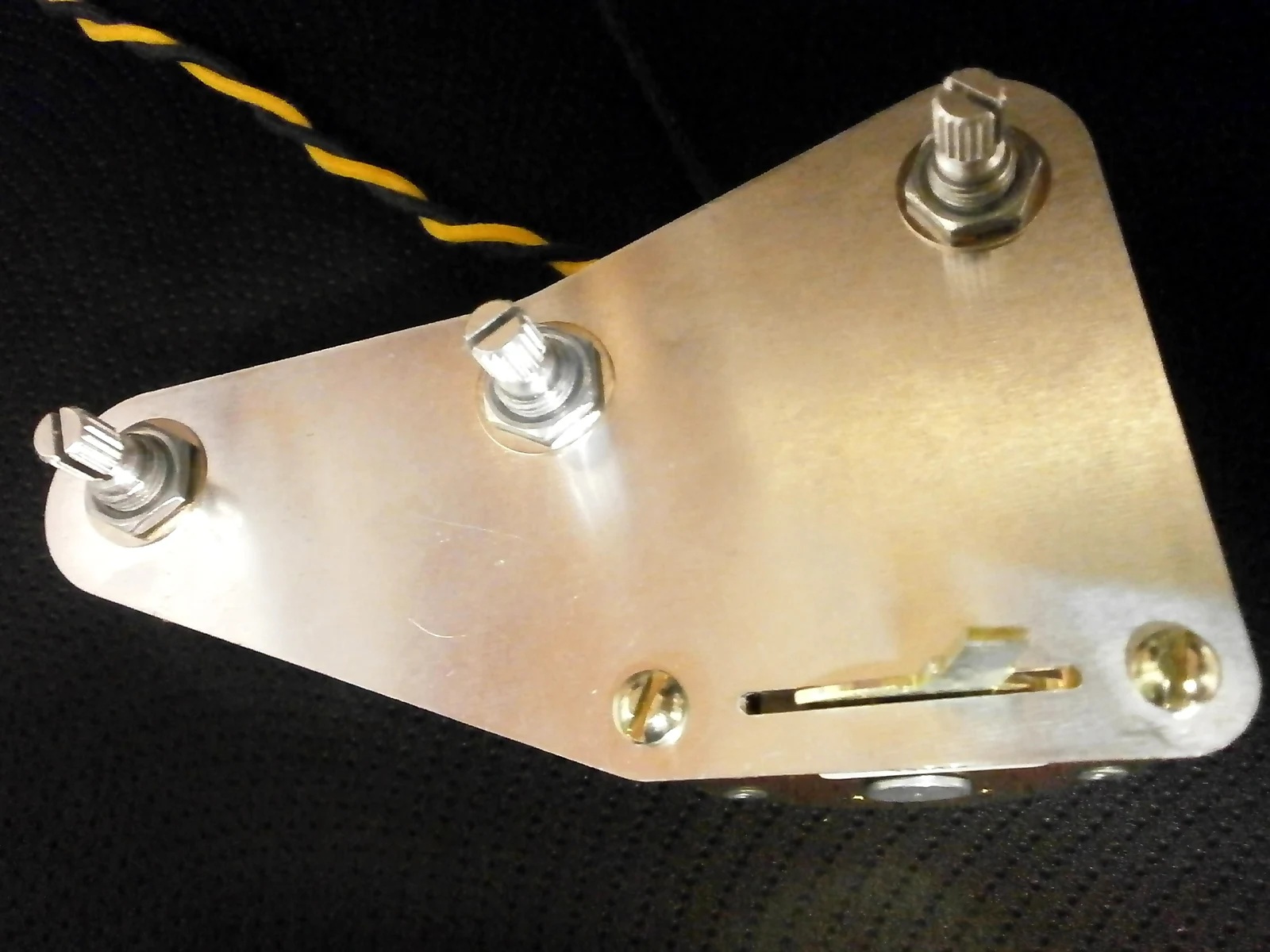

– assembled and soldered on a thin aluminum plate that will fit most Strat style guitars
– Switchcraft jack
This is a vintage-style pre-1980 wiring harness, with tone controls assigned as follows:
- Tone 1: Adjusts the neck pickup.
- Tone 2: Adjusts the middle pickup.
- Bridge pickup: No tone control, just like 50s, 60s and 70s Stratocasters.
If you’d like a tone control added to the bridge pickup, just send us a message, and we’ll make the adjustment for you!
Switch:
- Bridge
- Bridge/Middle
- Middle
- Middle/Neck
- Neck
5-way Oak Grigsby Switch Specs
| Body cavity depth required | 1-3/8″ (34.93mm) |
| Mounting screw spacing | 1-5/8″ (41.28mm) |
| Lever stem | .052″ x .188″ (1.32mm x 4.78mm) |
| Pickguard slot required | 1/16″ x 1-1/16″ (1.59mm x 26.99mm) |
Capacitor Specs
| Value | .033uF, 10%, 200V |

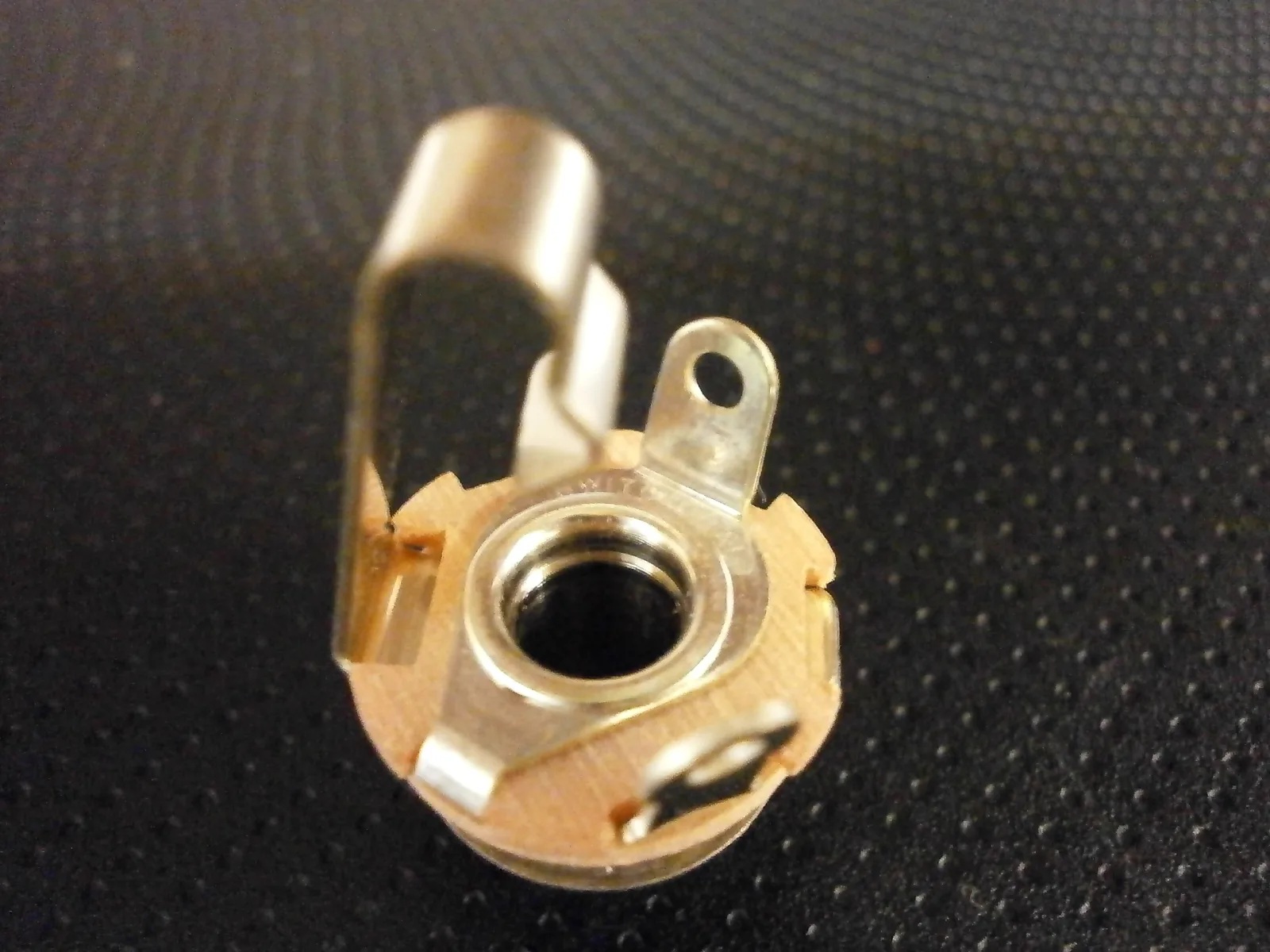

Switchcraft Output Jack Specs
| Accepts standard 1/4″ plug | Mono |
| Mounting hole diameter | 3/8″ (9.52mm) |
| Thread | 3/8″ x 32 |
| Threaded portion height | 1/4″ (6.35mm) |
